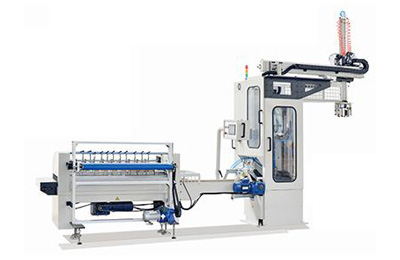

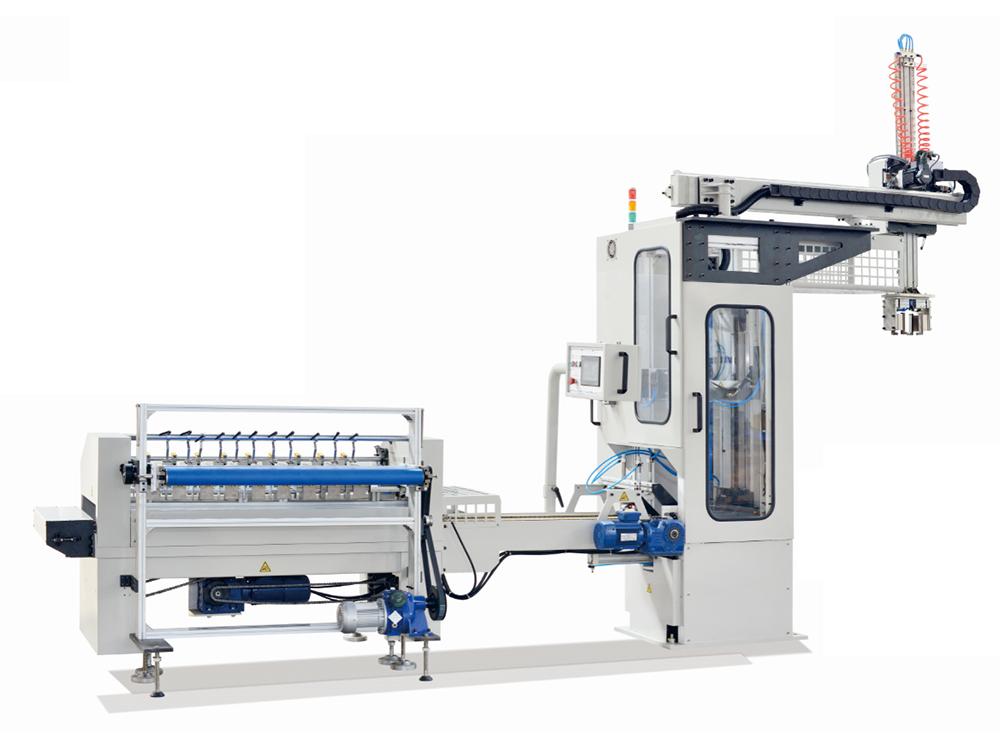

Transfer System
The transfer system is designed to connect the slitter and welder for an automatic material collection and feeding. It effectively reduces labor costs and improves productivity and is suitable for a wide range of can sizes.
Features
- The transfer system features a human to machine interface, a PLC system, servo system, and digital control.

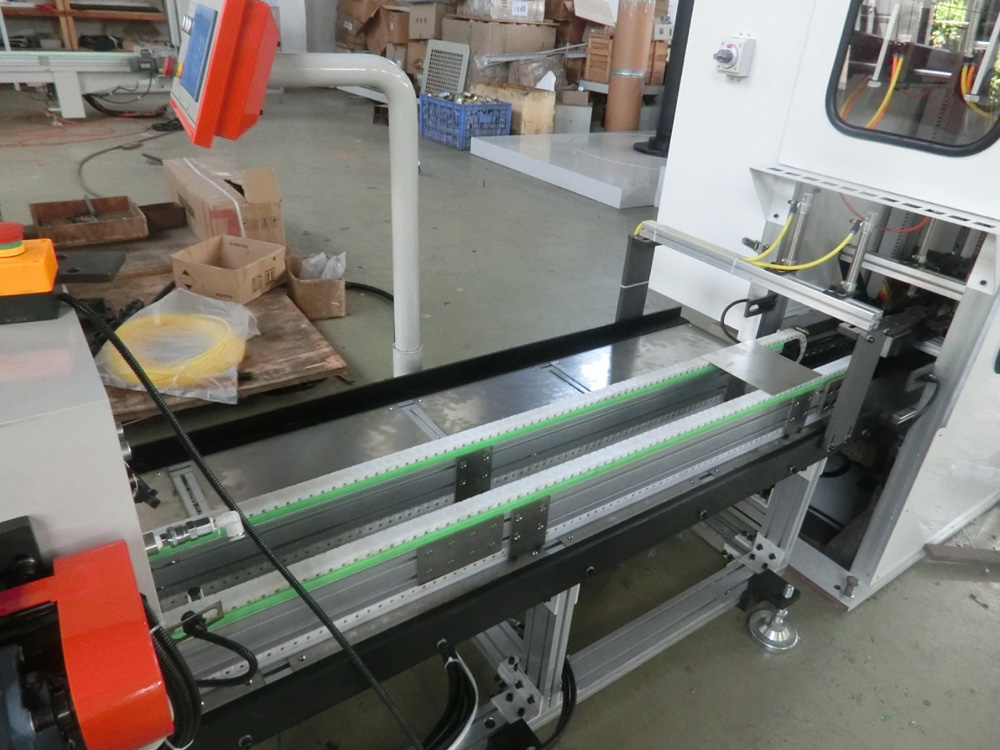

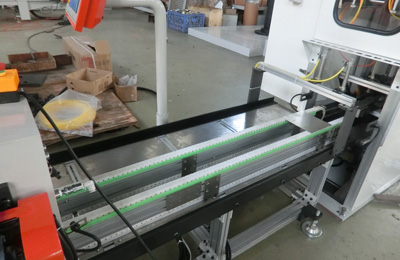

- The clean nylon conveyor chain effectively protects can bodies against oil pollution.
- The guide rail, bearing, electrical parts and pneumatic components are all supplied from prominent international brands.
- This transfer system has two transfer methods: linear and right-angle. Users can choose which is needed according to their factory needs.
Technical Specifications
| Models | BT-1 | BT-2 | BT-3 |
| Can inner diameter range | Φ99~Φ153mm | Φ52~Φ85mm | Φ180~Φ380mm |
| Height range | 65~265mm | 50~220mm | 100~550mm |
| Production output | 300pieces/min | 1000pieces/min | 100pieces/min |
| Electrical mains | AC380V, 50Hz, 2.5KW | AC380V, 50Hz, 5KW | |
| Air pressure & consumption | 0.5MPa, 20L/min | ||
