LT-A Series in-line can leakage tester for aerosol can

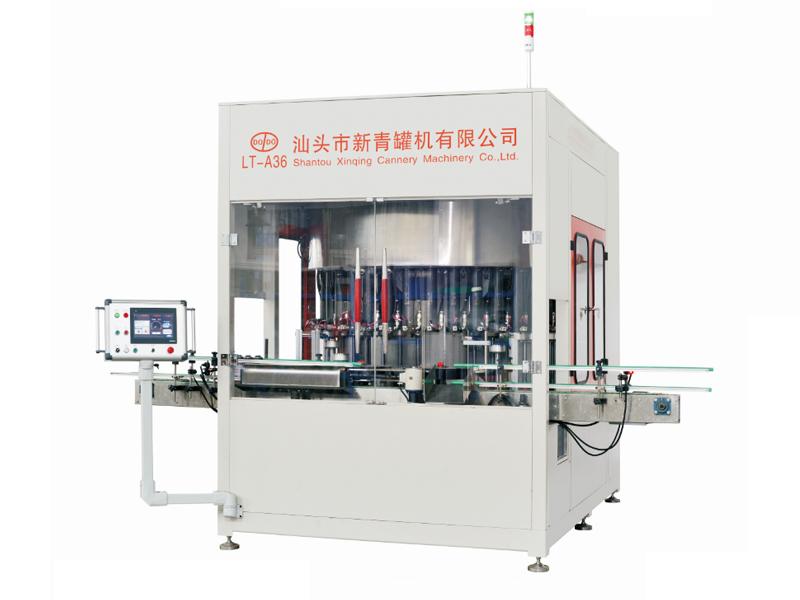

LT-A Series In-line Can Leakage Tester

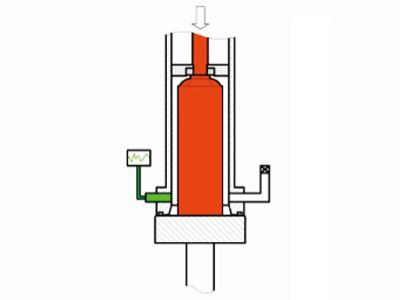

The in-line can leakage tester transfers empty cans into the hermetic test chamber where both can interior and exterior will be insulated. Empty cans will then be filled with compressed gases, with the inner pressure reaching 8-12 bars, while exterior pressure remains normal. Any small leaks that lead to pressure changes in the hermetic test chamber will be detected using a pressure sensor. If the pressure change exceeds a designated value, the empty can will be rejected as defective. In doing so, we are able to control can quality and performance, ensuring only those that are qualified will be sent further down the production line.

  • LT-A Series In-line Can Leakage Tester
  • LT-A Series In-line Can Leakage Tester
Features
  • Highly precise pressure sensor
  • Intelligent control system
  • Excellent fatigue resistant can pulling claw
  • Highly reliable hermetic system with a long service life
  • Pressure difference detection
  • Non-destructive online testing
  • Digital display
  • Quick and easy tool change for manufacturing different can types
Technical Specifications
Models LT-A18 LT-A24 LT-A36
Number of Heads 18 24 36
Production Speed Max.120cans/min Max.200cans/min Max.300cans/min
Can diameter range Φ45-Φ65 mm
Can height range 100-320mm
Inspection Range 150CC/10bar/min
Air Consumption 2.5m³/min ≥8bar 3m³/min ≥8bar 4.5m³/min ≥8bar
Power Consumption 5.5Kw 5.5Kw 6.5Kw
