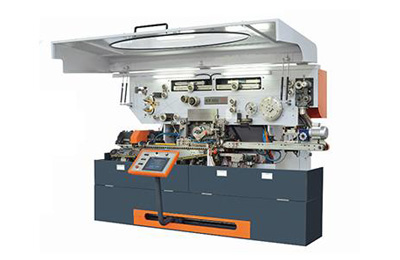

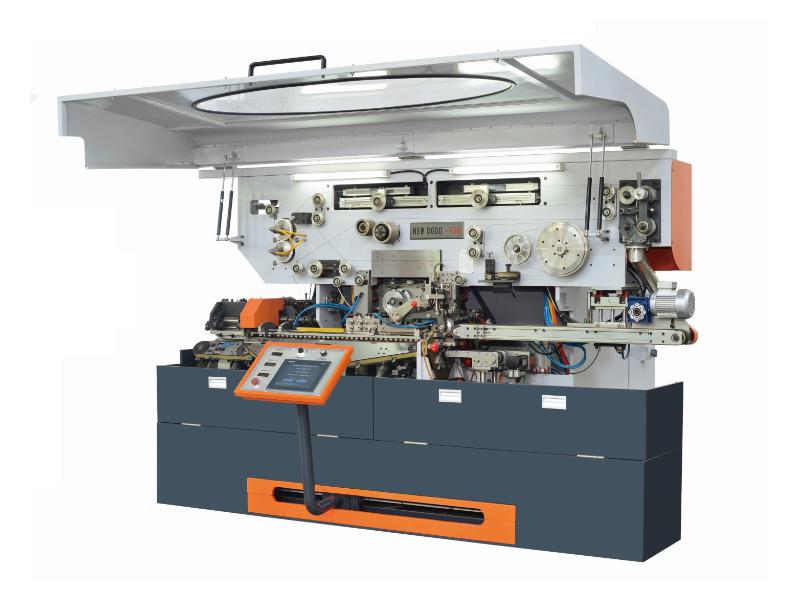

NEW DODO-700 Automatic Canbody Welder

NEW DODO-700 Automatic Canbody Welder
NEW DODO-700 Automatic Canbody Welder Face Mask Making Machine for Surgical Mask Face Mask Making Machine for Surgical Mask Face Mask Making Machine for Surgical Mask

The automatic canbody welder features components specially designed to maximize efficiency for the rounding and welding of three-piece metal can bodies. The production output can reach up to 700 cans/min.

Features
  • The electronic control system of the automatic canbody welder is comprised of a simple to use interface, PLC system, and servo system.
  • Its static variable frequency power source provides stability and minimizes energy consumption.

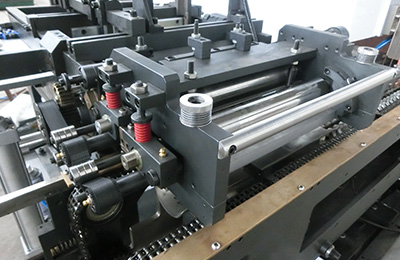

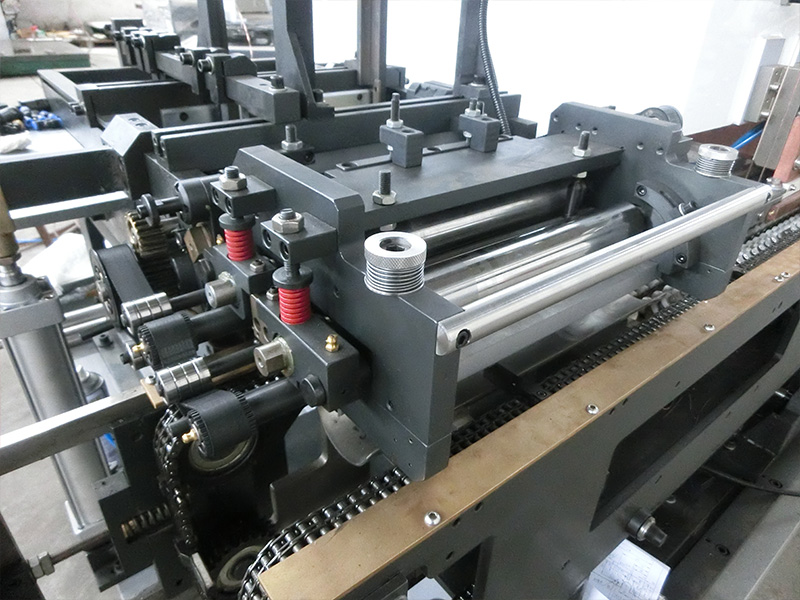

  • A special rounding device features excellent rounding and anti-scratching abilities. This device can process various types of materials used in can production.
  • Two-step servo based can feeding system offers high speed can feeding and stable running with low noise.
  • The key parts of this automatic canbody welder are produced using wear-resistant ceramics and high quality alloy steel.
  • Mercury free welding device, remote control system and weld seam detection system are optional.
Technical Specifications
Welding speed 80m/min（max）
Production output 700cans/min（Max）
Can inner diameter range Φ52～Φ75mm
Height range 50～140mm
Welding points distance 0.5～1.1mm
Overlap width 0.20～0.4mm
Sheet thickness 0.14～0.28mm
Temper T2.5～DR8
Wire diameter Φ1.24～1.38mm
Electrical mains Three phase Voltage: 380V
Welding frequency 250-850Hz
Cooling water >0.4MPa, ≤20℃, 60L/min
Air pressure and consumption >1000L/min, >0.6MPa
