NEW DODO-500 Automatic Canbody Welder

NEW DODO-700 Automatic Canbody Welder
NEW DODO-500 Automatic Canbody Welder NEW DODO-500 Automatic Canbody Welder NEW DODO-500 Automatic Canbody Welder NEW DODO-500 Automatic Canbody Welder

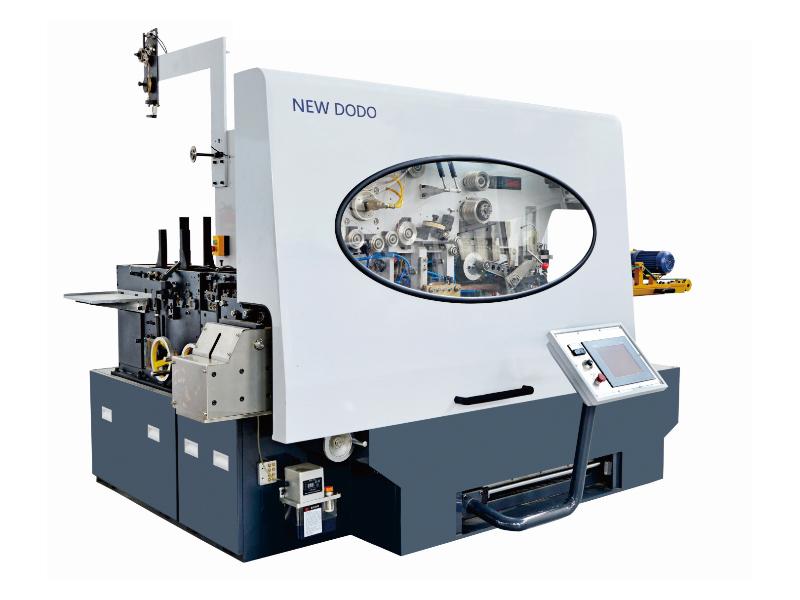

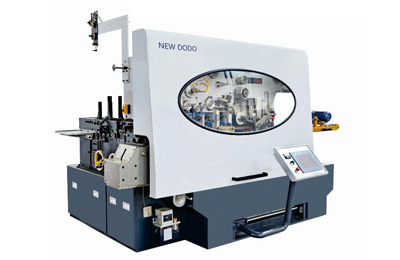

The automatic canbody welder is a multifunctional machine that performs high quality rounding and welding processes for the production of three-piece metal cans. The production output of the welding machine can reach 560 cans/min.

Features
  • The electronic control system of the automatic canbody welder is comprised of a simple to use interface, PLC system, and servo system.
  • Its static variable frequency power source provides stability and minimizes energy consumption.

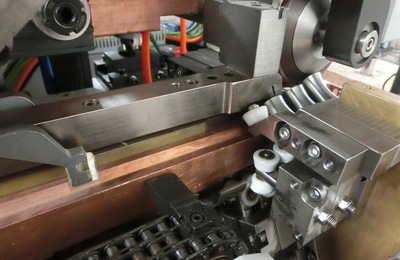

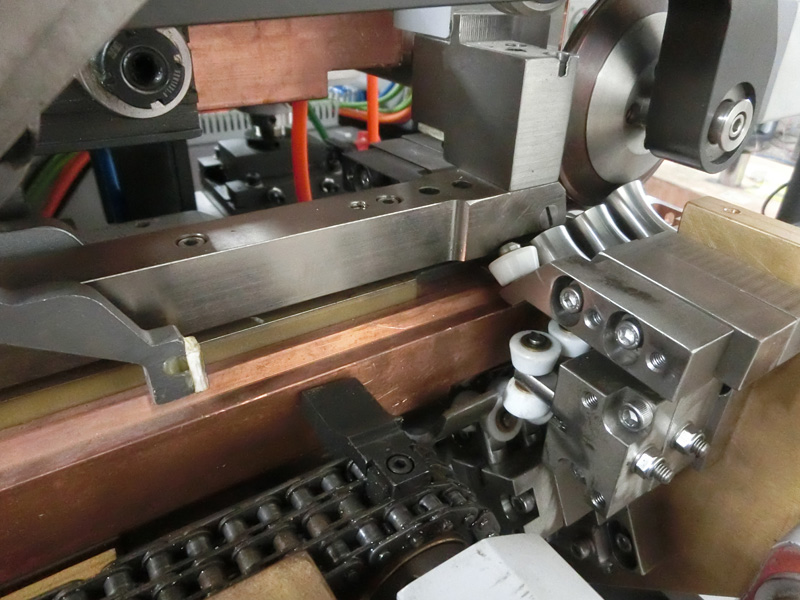

  • A special rounding device features excellent rounding and anti-scratching abilities. This device can process various types of materials used in can production.
  • Servo based can feeding system offers high speed can feeding and stable running with low noise.
  • The key parts of this automatic canbody welder are produced using wear-resistant ceramics and high quality alloy steel.
  • Mercury free welding device, remote control system and weld seam detection system are optional.
Technical Specification
Welding speed 70m/min（max）
Production output 560cans/min（Max）
Can inner diameter range Φ52～Φ99mm
Height range 50～140mm
Welding points distance 0.5～1.1mm
Overlap width 0.20～0.4mm
Sheet thickness 0.14～0.28mm
Temper T2.5～DR8
Copper wire diameter Φ1.24～1.38mm
Electrical mains Three phase Voltage: 380V, Frequency: 50Hz, Power consumption: 45kw
Welding frequency 250-850Hz
Cooling water >0.4MPa, ≤20℃, 60L/min
Air pressure and consumption >800L/min, >0.6MPa
