    NEW DODO Automatic Canbody Welder

    NEW DODO Automatic Canbody Welder
    NEW DODO-700 Automatic Canbody Welder Face Mask Making Machine for Surgical Mask Face Mask Making Machine for Surgical Mask Face Mask Making Machine for Surgical Mask

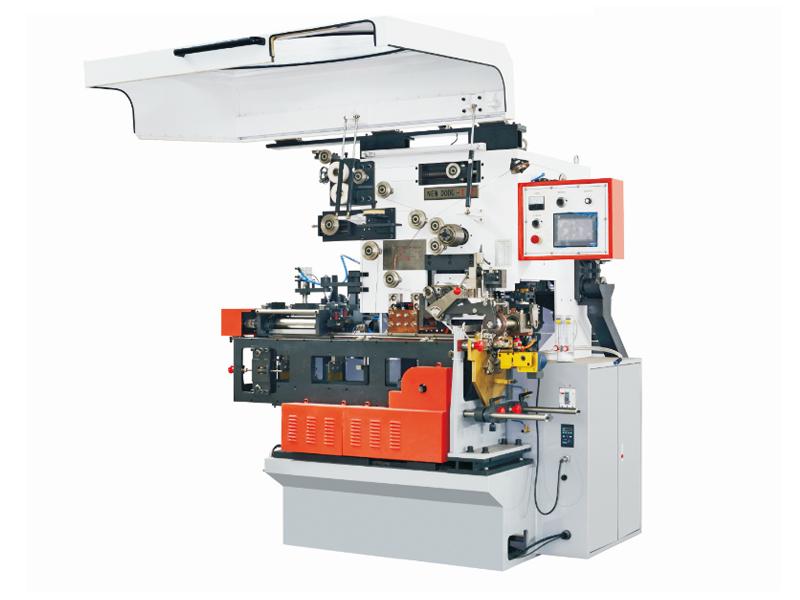

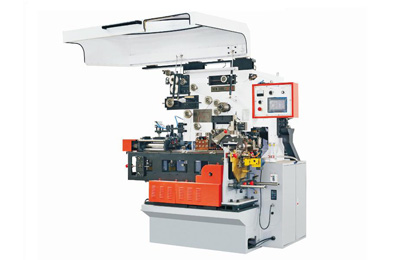

    The automatic canbody welder is designed to carry out the rounding and welding processes used in the production of three-piece metal can bodies. The production output of the NEW DODO-100D is 100 cans/min and the production output of NEW DODO-150 is 150 cans/min.

    Features
    • The electronic control system of the automatic canbody welder consists of an easy to use interface, PLC system, and servo system.
    • Its static variable frequency power source provides stability and minimizes energy consumption.
    • A special rounding device can process various types of tinplate.
    • The horizontal can pushing structure is servo codntrolled to enhance efficiency.
    • Mercury free welding device, remote control system and weld seam detection system are all optional.
    Technical Specifications
    Models NEW DODO-100D NEW DODO-150
    Production output 100cans/min (Max) 150cans/min (Max)
    Can inner diameter range Φ99~Φ179mm Φ52~Φ99mm
    Welding speed 9-26m/min
    Height range 70-265mm
    Welding points distance 0.5-0.9mm
    Overlap width 0.25~0.6mm
    Sheet thickness 0.16~0.30mm
    Temper T2.5~DR8
    Wire diameter Φ1.24~1.38mm
    Electrical mains Three phase Voltage: 380V, Frequency: 50Hz , Power consumption: 22Kw
    Welding frequency 120-260Hz
    Cooling water >0.5MPa, 12-18℃, 40L/min
    Air pressure and consumption >600L/min, >0.6MPa
