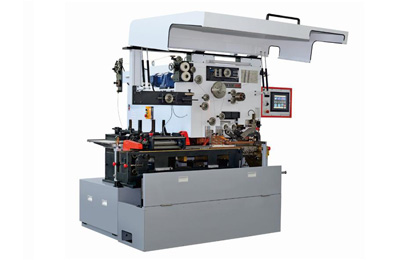

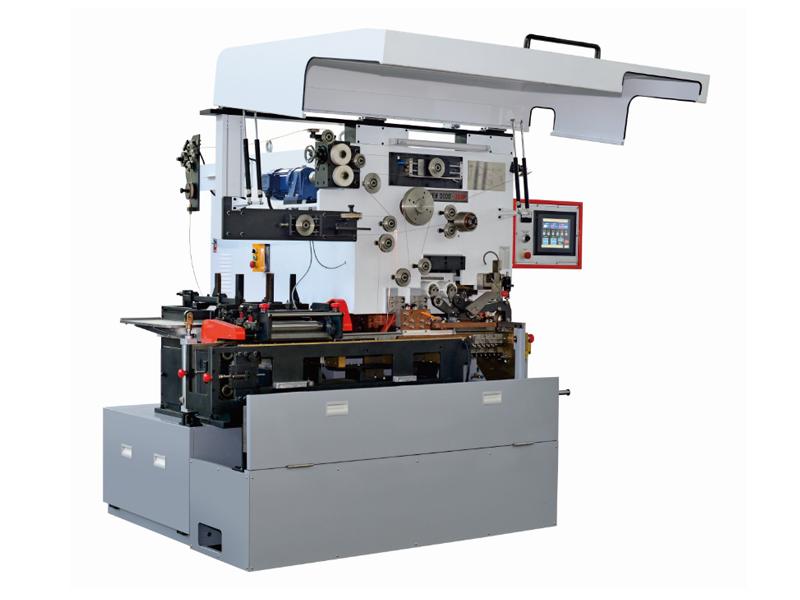

    NEW DODO-300H Automatic Canbody Welder

    NEW DODO-300H Automatic Canbody Welder
    NEW DODO-300H Automatic Canbody Welder NEW DODO-300H Automatic Canbody Welder NEW DODO-300H Automatic Canbody Welder NEW DODO-300H Automatic Canbody Welder

    This automatic canbody welder is designed to complete high precision rounding and welding processes for the production of three-piece metal can bodies. The production output of this welder is 150 cans/min to 300 cans/min depending on the height of different cans.

    Features
    • This automatic canbody welder is equipped with an easy to use interface, PLC system, and servo system.
    • Its static variable frequency power source provides stability and energy savings.

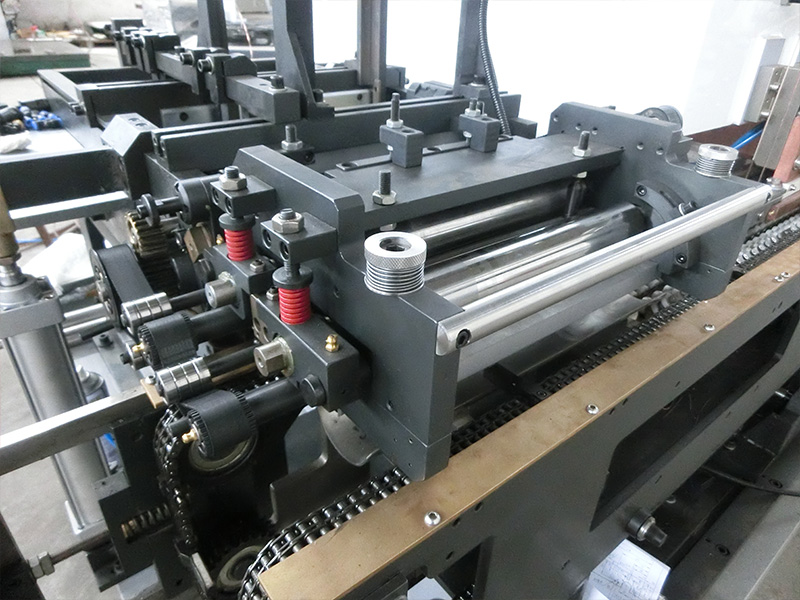

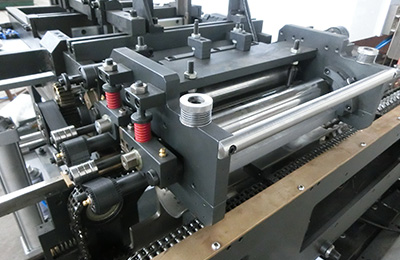

    • The special rounding device can process various types of tinplate.

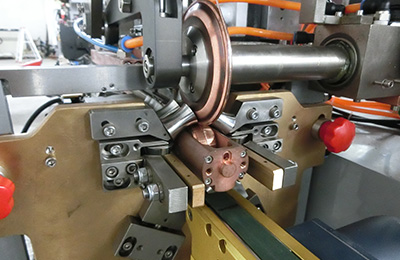

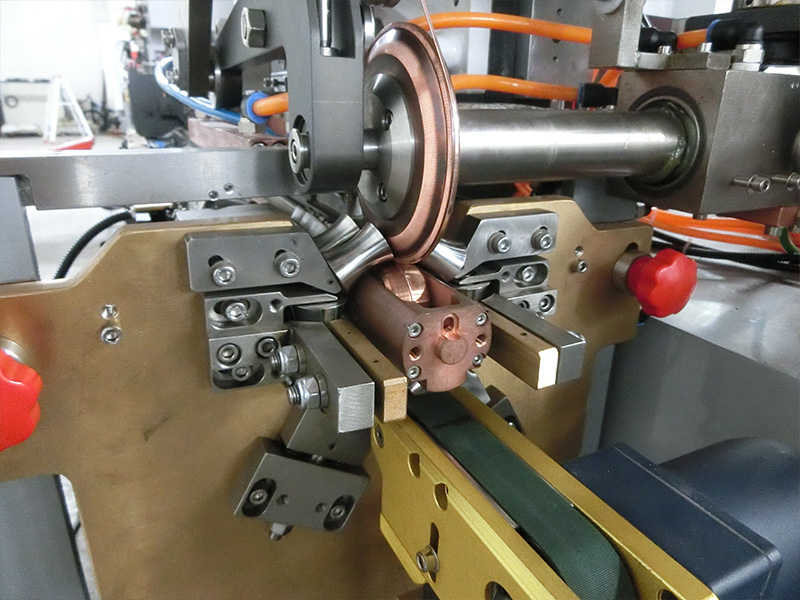

    • The copper wire profiling roller and Z-rail are made of wear-resistant ceramics
    • Remote control system and weld seam detection system are optional.
    Technical Specifications
    Welding speed 48m/min(max)
    Production output H133mm: 300cans/min(Max)
    H180mm: 240cans/min(Max)
    H240mm: 180cans/min(Max)
    H300mm: 150cans/min(Max)
    Can inner diameter range Φ52~Φ99mm
    Height range 100~320mm
    Welding points distance 0.5~0.9mm
    Overlap width 0.25~0.5mm
    Sheet thickness 0.16~0.30mm
    Temper T2.5~DR8
    Wire diameter Φ1.24~1.38mm
    Electrical mains Three phase Voltage: 380V
    Frequency: 50Hz
    Power consumption: 45kw
    Welding frequency 220-450Hz
    Cooling water >0.4MPa, 12-18℃, 50L/min
    Air pressure&consumption >600L/min, >0.6MPa
