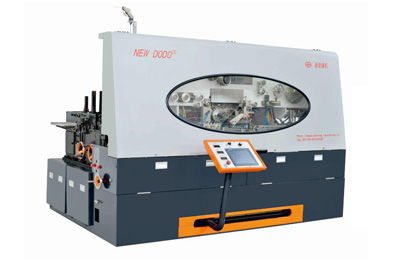

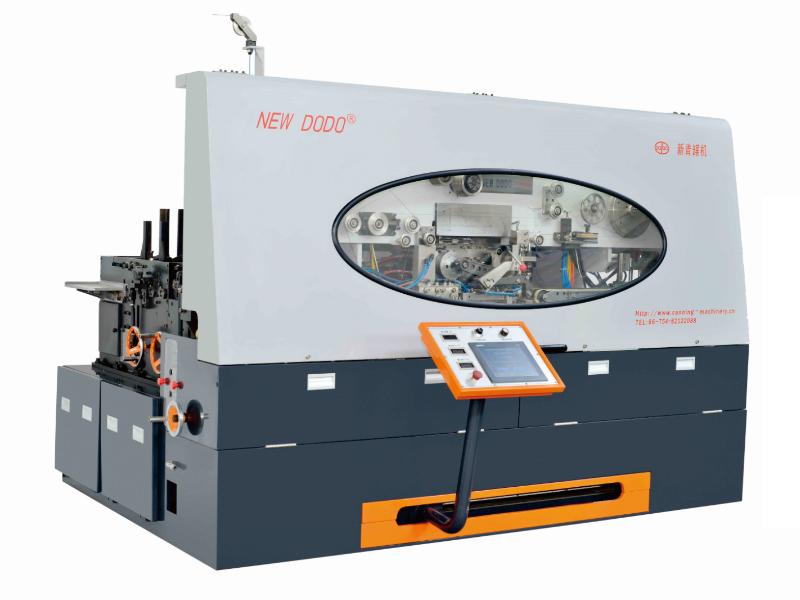

NEW DODO-500H Automatic Canbody Welder NEW DODO-500H Automatic Canbody Welder NEW DODO-500H Automatic Canbody Welder NEW DODO-500H Automatic Canbody Welder

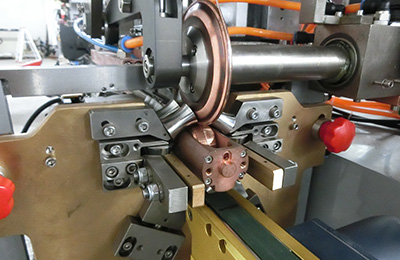

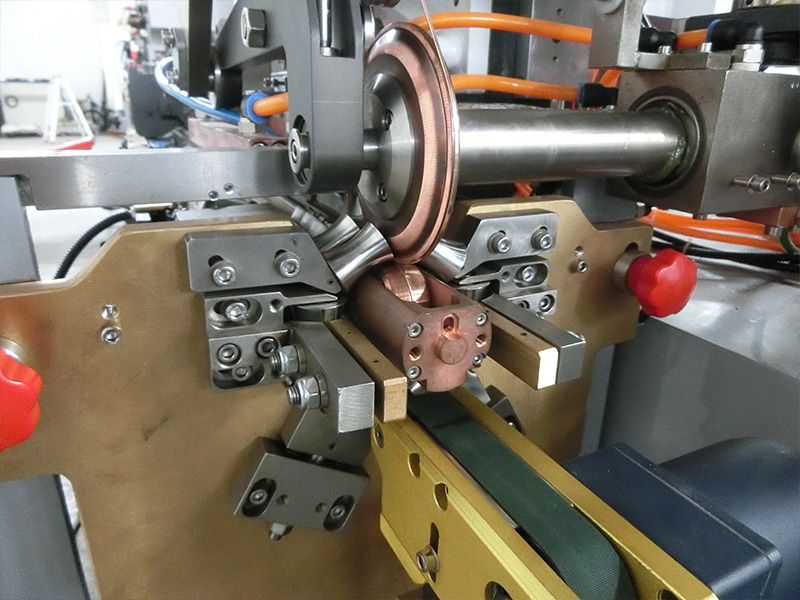

The automatic canbody welder is designed to carry out the rounding and welding processes used in the production of three-piece metal can bodies. The production output of this welder is 200 cans/min to 400 cans/min depending on the height of the can.

Features
  • The electronic control system of the automatic canbody welder consists of an easy to use interface, PLC system, and servo system.
  • Its static variable frequency power source provides stability and energy savings.

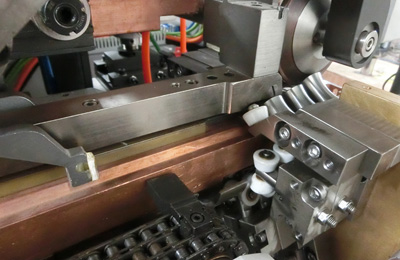

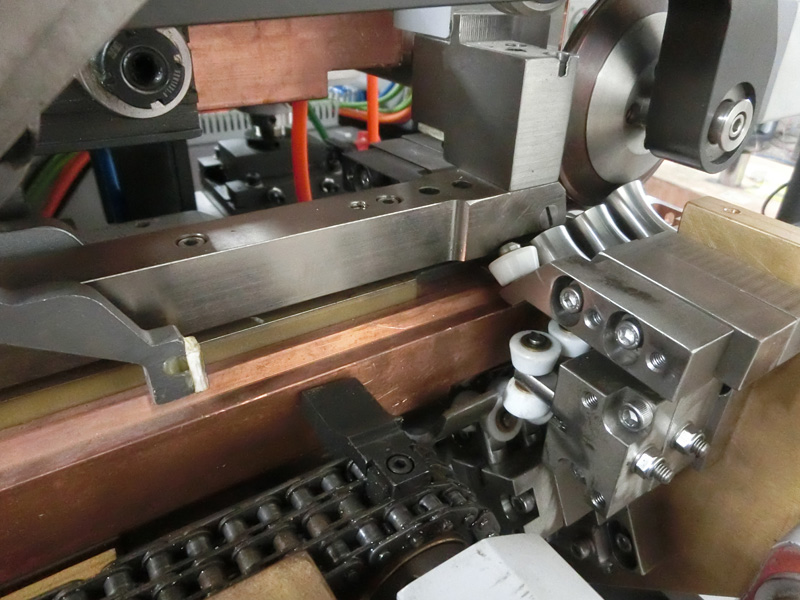

  • Special rounding device features excellent rounding and anti-scratching abilities. This device can process various types of tinplate.
  • The key parts of this automatic canbody welder are made of wear-resistant ceramics and high quality alloy steel.
  • Remote control system and a weld seam detection system are optional.
Technical Specifications
Welding speed 70m/min（max）
Production output H133mm: 400cans/min（Max）
H180mm: 300cans/min（Max）
H240mm: 250cans/min（Max）
H300mm: 200cans/min（Max）
Can inner diameter range Φ52～Φ75mm
Height range 100～320mm
Welding points distance 0.5～0.9mm
Overlap width 0.25～0.5mm
Sheet thickness 0.16～0.30mm
Temper T2.5～DR8
Wire diameter Φ1.24～1.38mm
Electrical mains Three phase Voltage: 380V
Frequency: 50Hz
Power consumption: 45kw
Welding frequency 250-850Hz
Cooling water >0.4MPa, 12-18℃, 50L/min
Air pressure&consumption >800L/min, >0.6MPa
