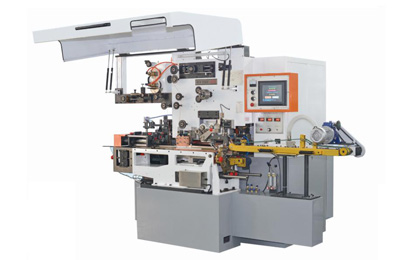

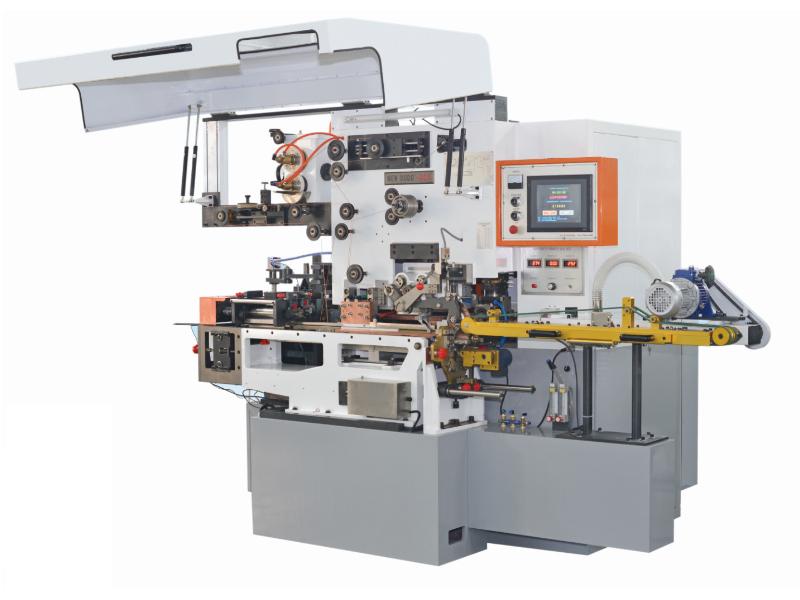

NEW DODO-300 Automatic Canbody Welder

NEW DODO-300 Automatic Canbody Welder
NEW DODO-300 Automatic Canbody Welder NEW DODO-300 Automatic Canbody Welder NEW DODO-300 Automatic Canbody Welder NEW DODO-300 Automatic Canbody Welder

The automatic canbody welder is designed for rounding and welding processes for the production of high quality three-piece metal can bodies. The production output of this welder is up to 300 cans/min.

Features
  • The automatic canbody welder is equipped with a simple to use interface, PLC system, and servo system.
  • Its static variable frequency power source provides stability and energy savings.

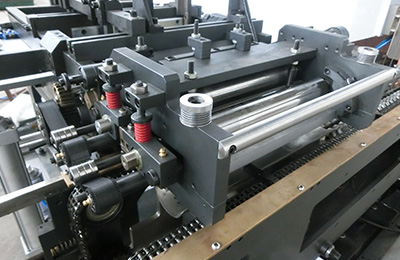

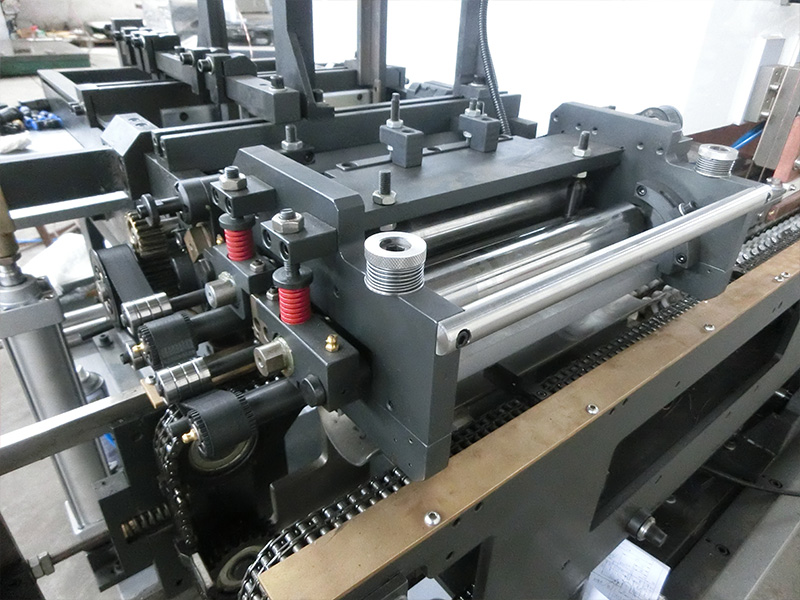

  • A special rounding device can process various types of tinplate for different can bodies.

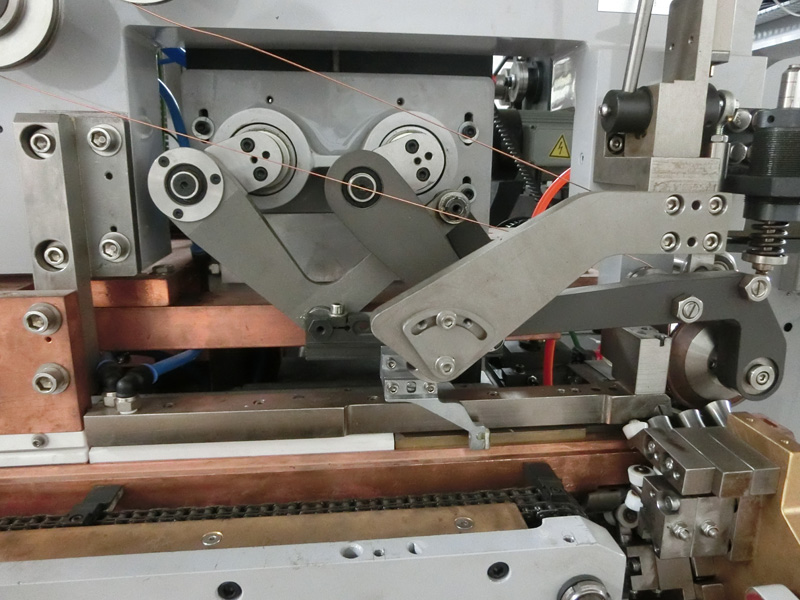

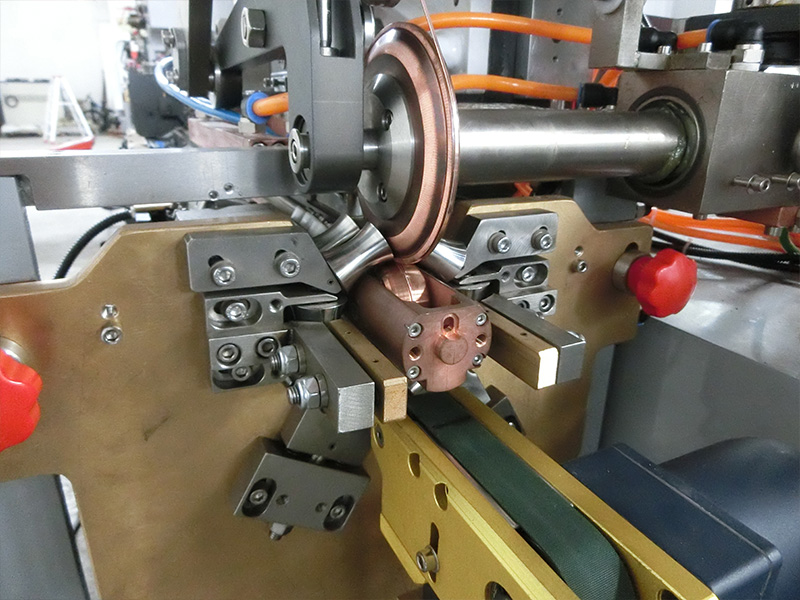

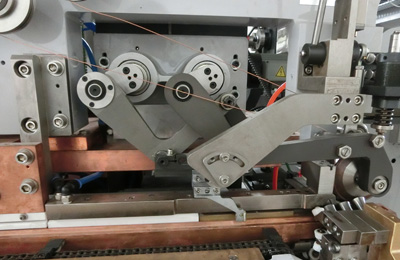

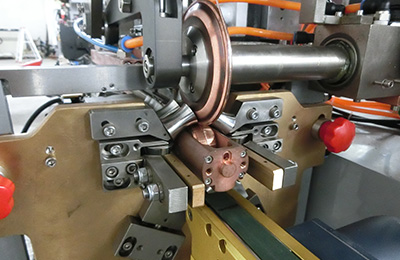

  • The copper wire profiling roller and Z-rail are made of wear-resistant ceramics.
  • Automatic scoring unit, remote control system and weld seam detection system are all optional.
Technical Specifications
Welding speed 40m/min（max）
Production output 300cans/min（Max）
Can inner diameter range Φ52～Φ99mm
Height range 60～180mm
Welding points distance 0.5～0.9mm
Overlap width 0.25～0.4mm
Sheet thickness 0.14～0.30mm
Temper T2.5～DR8
Wire diameter Φ1.24～1.38mm
Electrical mains Three phase Voltage: 380V
Welding frequency 180-400Hz
Cooling water >0.4MPa, 12-18℃, 40L/min
Air pressure and consumption >600L/min, >0.6MPa
