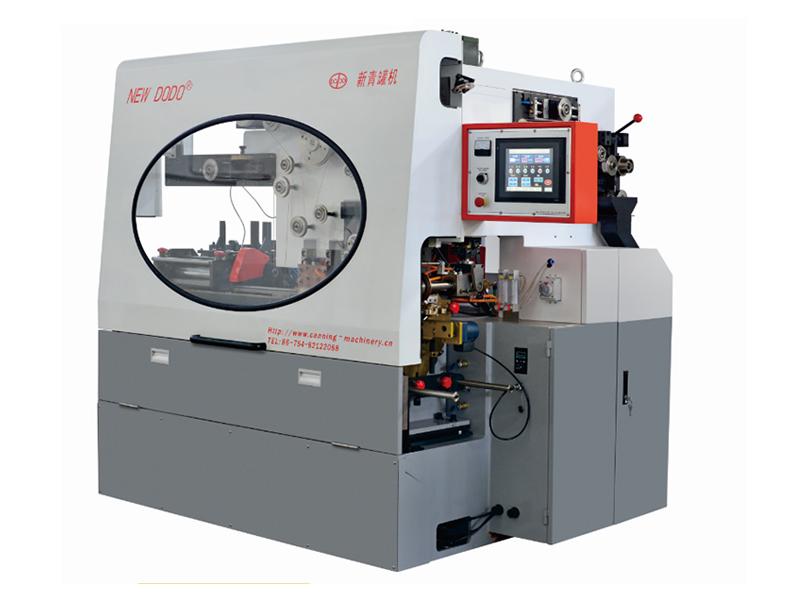

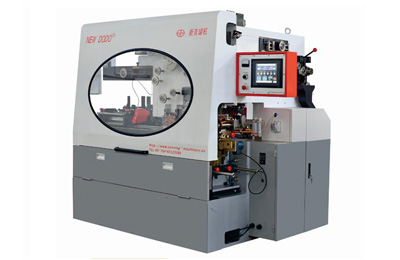

The automatic canbody welder is specially designed for the production of milk powder cans and other large cans. It is capable of completing rounding and welding processes for can production. The output of this welder is up to 250 cans/min.

Features
  • The automatic canbody welder is equipped with an easy to use interface, PLC system, and servo system.
  • Its static variable frequency power source provides stability and energy savings.

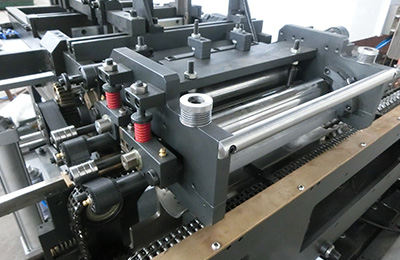

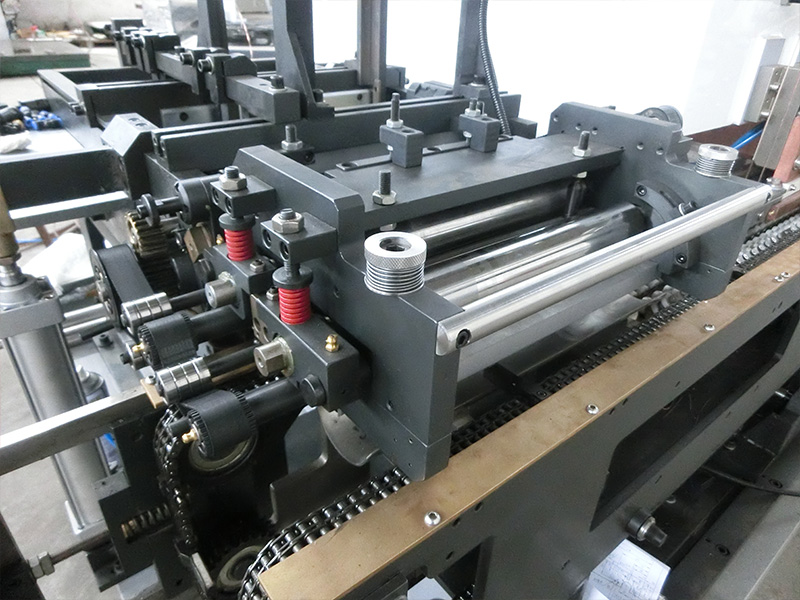

  • A special rounding device can process various types of tinplate.

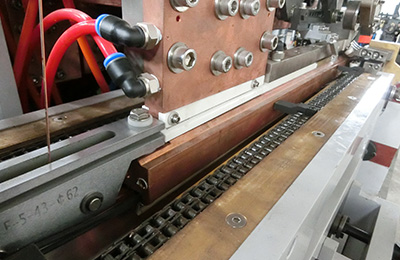

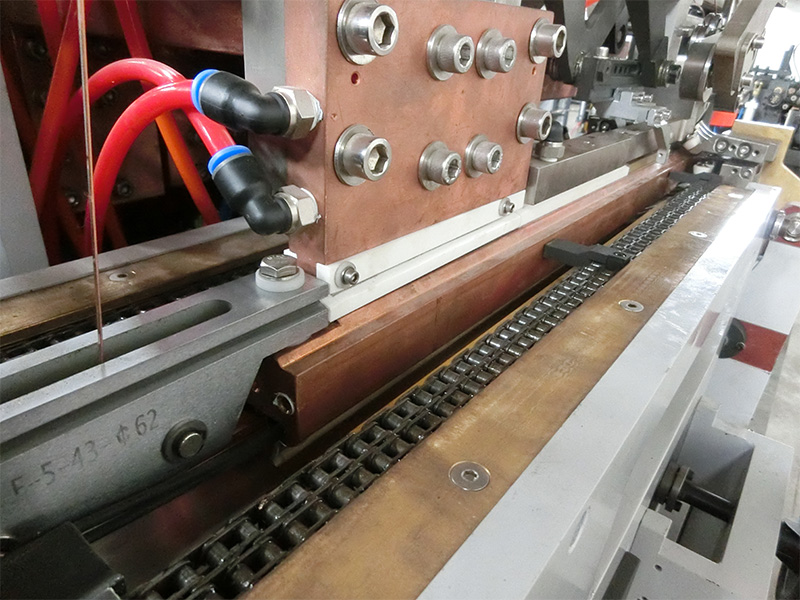

  • The copper wire profiling roller and Z-rail are made of wear-resistant ceramics.
  • Mercury free welding device, remote control system and weld seam detection system are all optional.
Technical Specifications
Welding speed 36m/min（max）
Production output can shape#401: 250cans/min（Max）
can shape502: 180cans/min（Max）
can shape#603: 150cans/min（Max）
Can inner diameter range Φ99～Φ153mm (special Customized to Φ179mm)
Height range 65～320mm
Welding points distance 0.5～0.9mm
Overlap width 0.25～0.5mm
Sheet thickness 0.16～0.30mm
Temper T2.5～DR8
Wire diameter Φ1.24～1.38mm
Electrical mains Three phase Voltage: 380V; Frequency: 50Hz; Power consumption: 30kw
Welding frequency 200-450Hz
Cooling water >0.4MPa, 12-18℃, 40L/min
Air pressure and consumption >600L/min, >0.6MPa
