    NEW DODO-400 Automatic Canbody Welder

    NEW DODO-400 Automatic Canbody Welder
    NEW DODO-400 Automatic Canbody Welder NEW DODO-400 Automatic Canbody Welder NEW DODO-400 Automatic Canbody Welder NEW DODO-400 Automatic Canbody Welder

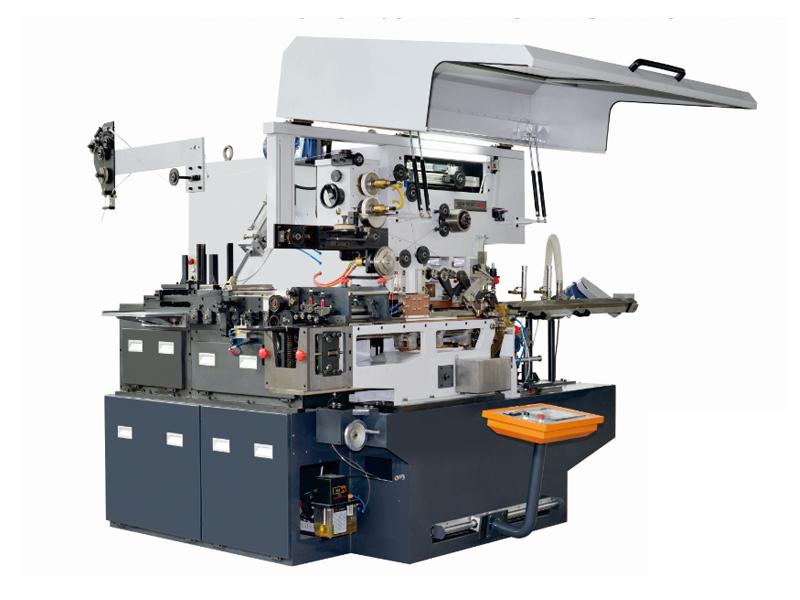

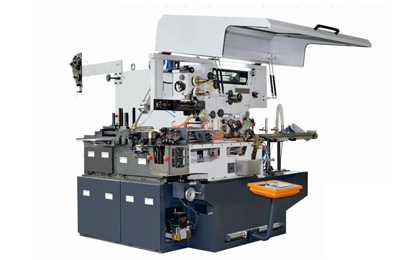

    The automatic canbody welder is designed to perform rounding, and welding processes for the production of three-piece metal can bodies. It comes in two models: the NEW DODO-400A with a production output of 450 cans/min and the NEW DODO-400D with a speed of 200 cans/min.

    Features
    • The electronic control system of the automatic canbody welder consists of human machine interface, PLC system, and servo system.
    • Its static variable frequency power source provides stability and minimizes energy consumption.

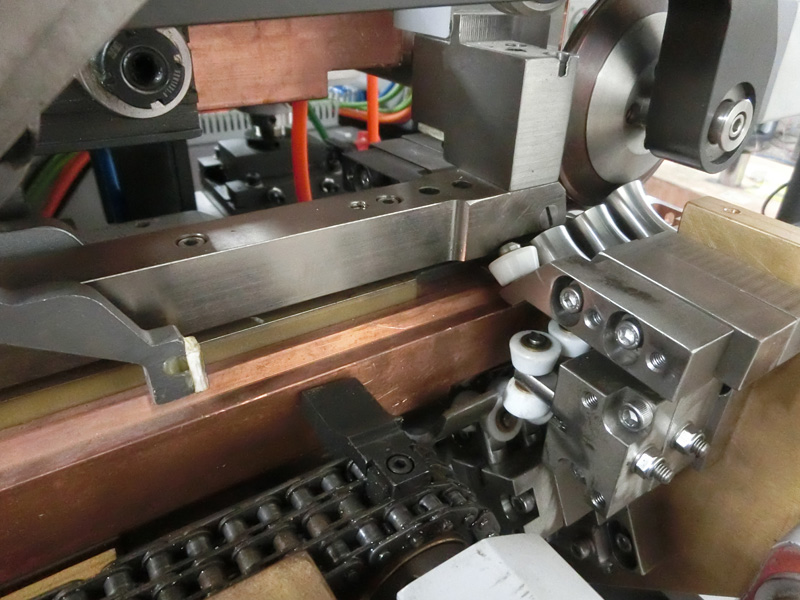

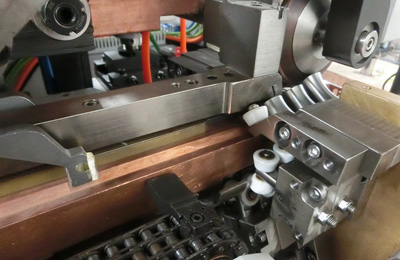

    • A special rounding device features excellent rounding and anti-scratching abilities. This device can process various types of materials used in can production.
    • The key parts of this automatic canbody welder are produced using wear-resistant ceramics and high quality alloy steel.
    • Mercury free welding device, remote control system and weld seam detection system are optional.
    Technical Specifications
    Models NEW DODO-400A NEW DODO-400D
    Welding speed 55m/min(max) 48m/min(max)
    Production output 450cans/min(Max) 200cans/min(Max)
    Can inner diameter range Φ52~Φ99mm Φ99~Φ153mm
    Height range 50~140mm 65~305mm
    Welding points distance 0.5~1.1mm
    Overlap width 0.25~0.4mm 0.25~0.6mm
    Sheet thickness 0.14~0.30mm 0.16~0.30mm
    Temper T2.5~DR8
    Wire diameter Φ1.24~1.38mm
    Electrical mains Three phase Voltage: 380V, Frequency: 50Hz
    Power consumption 45kw 35kw
    Welding frequency 250-850Hz 250-450Hz
    Cooling water >0.4MPa, ≤20℃, 60L/min
    Air pressure and consumption >800L/min, >0.6MPa
